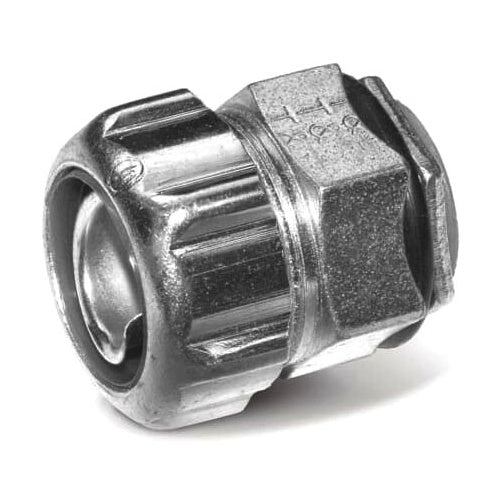

T&B 5367 2" Str Chase Liquidtight Insulated Connector Iron

Overview

T&B 5367 2" Str Chase Liquidtight Insulated Connector Iron

Product Specifications

• UPC: 78621005367
• Used On: LIQUIDTIGHT FLEXIBLE METALLIC CONDUIT
• Catalog Number: 5367
• Brand Name: CHASE
• Type: STRAIGHT
• Throat Type: NYLON INSULATED
• Trade Size: 2 INCH
• Material: ELECTRO ZINC PLATED CHROMATE COATED STEEL BODY/GLAND/GROUND CONE/LOCKNUT, THERMOPLASTIC SEALING RING/INSULATOR, BUNA-N/STAINLESS STEEL SEALING GASKET
• Standard Package: 5
• Approval: UL 514-B, CSA C22.2
• Catalog Description: 2 INCH STRAIGHT MALLEABLE IRON CHASE LIQUIDTIGHT INSULATED CONNECTOR WITH ELECTRO-ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded Type; Zinc Electroplated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 5 Standard Package; 2 Inch Trade Size; Insulated Throat Type; CHASE[R] Brand; RoHS Compliant; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053677
• SKU Name: t&b 5367
