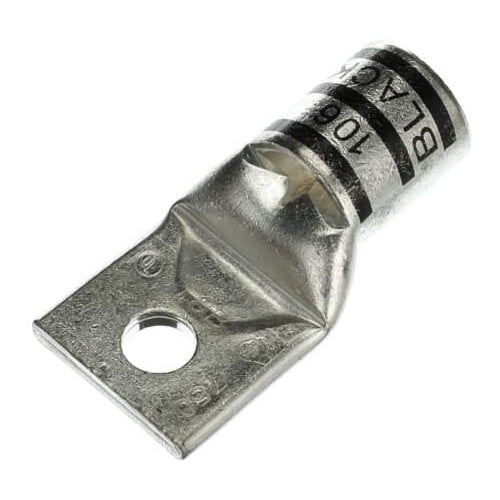

T&B 54123-TB 750 Copper Standard Barrel 1-Hole 5/8" Bolt

Overview

T&B 54123-TB 750 Copper Standard Barrel 1-Hole 5/8" Bolt

Product Specifications

• UPC: 78621054123
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Black
• Die Index: 106
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 3.87 Inch
• Approval: UL, CSA
• Catalog Number: 54123-TB
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 750 KCMIL (Code), 1.06 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 1.58 Inch Length x 1.94 Inch Width x 0.27 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 750 KCMIL, 5/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 106, DIE COLOR CODE BLACK
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Black Color; 3.87 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 750 kcmil (Code), 1.06 (Flex) Conductor Size; 5/8 Inch Stud Size; 106 Die Index; 1.58 Inch Length X 1.94 Inch Width X 0.27 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 541 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541235
• SKU Name: t&b 54123tb
