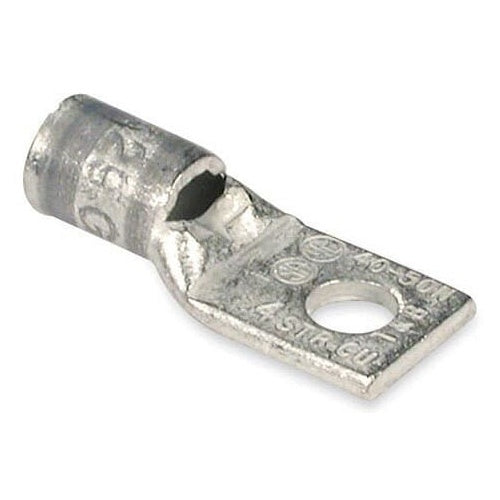

T&B 54139 No4 Copper Standard Barrel 1-Hole 5/16" Bolt

Overview

T&B 54139 No4 Copper Standard Barrel 1-Hole 5/16" Bolt

Product Specifications

• UPC: 78621054139
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Color: Gray
• Die Index: 29
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 1.42 Inch
• Approval: UL, CSA
• Additional Information: Wire Strip Length 5/8 Inch; Includes Sight Hole
• Catalog Number: 54139
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4 AWG (Code), 40-50 (Navy, Flex), 5 AWG Stranded (Flex), 91/24 (Flex), 133/0.0177 (Flex), 49/0.029 (Flex), 0.265 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 0.66 Inch Length x 0.61 Inch Width x 0.07 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #4 AWG, 5/16 INCH BOLT SIZE, TIN PLATED, DIE CODE 29, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Gray Color; 1.42 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4 AWG (Code), 40-50 (Navy, Flex), 5 AWG Stranded (Flex), 91/24 (Flex), 133/0.0177 (Flex), 49/0.029 (Flex), 0.265 (Flex) Conductor Size; 5/16 Inch Stud Size; 29 Die Index; 0.66 Inch Length X 0.61 Inch Width X 0.07 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Wire Strip Length 5/8 Inch; Includes Sight Hole; 541 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541396
• SKU Name: t&b 54139
