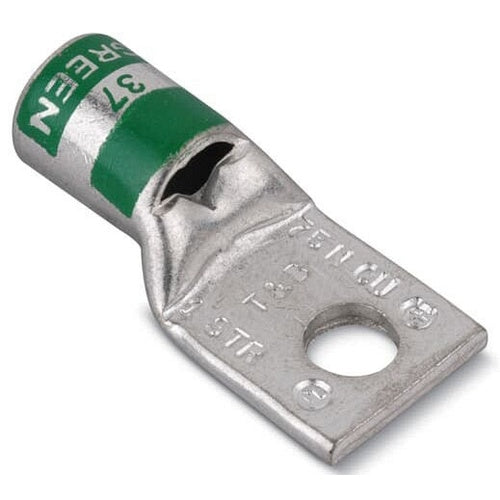

T&B 54150 No1 Copper Standard Barrel 1-Hole 1/2" Bolt

Overview

T&B 54150 No1 Copper Standard Barrel 1-Hole 1/2" Bolt

Product Specifications

• UPC: 78621054150
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Green
• Die Index: 37
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 2.1 Inch
• Approval: UL, CSA
• Catalog Number: 54150
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1 AWG (Code), 1 AWG (Stranded), 2 AWG (Stranded, Weld, Flex), 75 (Navy, Flex), 150/24 (Flex), 175/24 (Flex), 133/0.0223 (Flex), 0.36 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 1.25 Inch Length x 0.76 Inch Width x 0.11 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #1 AWG, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 37, DIE COLOR CODE GREEN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Green Color; 2.1 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 1 AWG (Code), 1 AWG (Stranded), 2 AWG (Stranded, Weld, Flex), 75 (Navy, Flex), 150/24 (Flex), 175/24 (Flex), 133/0.0223 (Flex), 0.36 (Flex) Conductor Size; 1/2 Inch Stud Size; 37 Die Index; 1.25 Inch Length X 0.76 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 541 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541501
• SKU Name: t&b 54150
