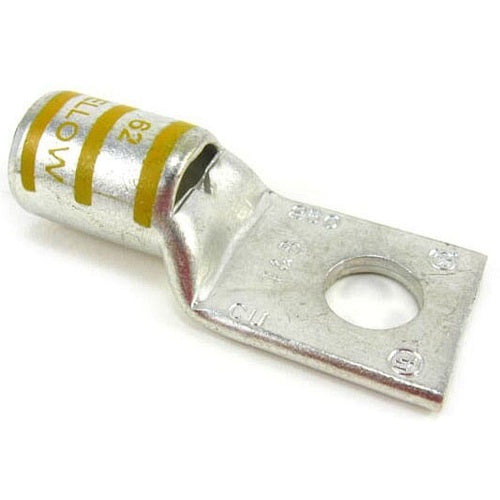

T&B 54173 250Mcm Yellow 1-Hole Copper Lug

Overview

T&B 54173 250Mcm Yellow 1-Hole Copper Lug

Product Specifications

• UPC: 78621054173
• Color: Yellow
• Die Index: 62
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 2.23 Inch
• Approval: UL, CSA
• Catalog Number: 54173
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 250 KCMIL (Code)
• Barrel Type: Standard, Straight
• Pad Size: 0.88 Inch Length x 1.13 Inch Width x 0.14 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, MAX 35KV, WIRE SIZE 250 KCMIL, 5/16 INCH BOLT SIZE, TIN PLATED, DIE CODE 62, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Yellow Color; 2.23 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 250 kcmil (Code) Conductor Size; 5/16 Inch Stud Size; 62 Die Index; 0.88 Inch Length X 1.13 Inch Width X 0.14 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541730
• SKU Name: t&b 54173
