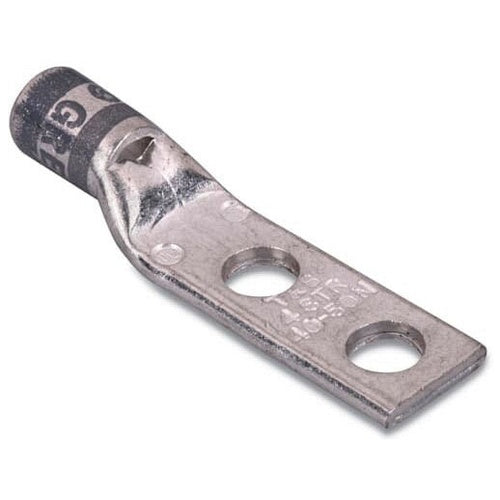

T&B 54206 4Awg Grey 2-Hole Copper Lug

Overview

T&B 54206 4Awg Grey 2-Hole Copper Lug

Product Specifications

• UPC: 78621054206
• Stud Size: 1/4 Inch
• Color: Gray
• Die Index: 29
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 2.03 Inch
• Approval: UL, CSA
• Additional Information: Includes Peep Hole
• Catalog Number: 54206
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4 AWG (Code)
• Barrel Type: Standard, Straight
• Pad Size: 1.28 Inch Length x 0.52 Inch Width x 0.1 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 5/8 Inch
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #4 AWG, 1/4 INCH BOLT SIZE, 5/8 INCH HOLE SPACING, TIN PLATED, DIE CODE 29, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Gray Color; 2.03 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4 AWG (Code) Conductor Size; 1/4 Inch Stud Size; 29 Die Index; 1.28 Inch Length X 0.52 Inch Width X 0.1 Inch Thickness Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Standard, Straight Barrel Type; Includes Peep Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210542065
• SKU Name: t&b 54206
