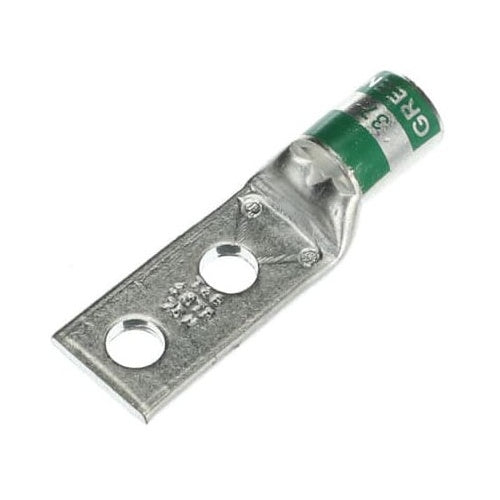

T&B 54208 1Awg Green 2-Hole Copper Lug

Overview

T&B 54208 1Awg Green 2-Hole Copper Lug

Product Specifications

• UPC: 78621054208
• Number Of Pad Holes: 2
• Pad Hole Spacing: 0.63 Inch
• Stud Size: 1/4 Inch
• Color: Green
• Die Index: 37
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 2.13 Inch
• Approval: UL, CSA
• Catalog Number: 54208
• Brand Name: Color-Keyed
• Model: 542
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1 AWG (Code), 150/24 (Flex), 175/24 (Flex), 133/0.0223 (Flex), 75 (Navy, Flex)
• Barrel Type: Standard, Straight
• Pad Size: 1.28 Inch Length x 0.68 Inch Width x 0.11 Inch Thickness
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #1 AWG, 1/4 INCH BOLT SIZE, 5/8 INCH HOLE SPACING, TIN PLATED, DIE CODE 37, DIE COLOR CODE GREEN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Green Color; 2.13 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 1 AWG (Code), 150/24 (Flex), 175/24 (Flex), 133/0.0223 (Flex), 75 (Navy, Flex) Conductor Size; 1/4 Inch Stud Size; 37 Die Index; 1.28 Inch Length X 0.68 Inch Width X 0.11 Inch Thickness Pad Size; 2 Pad Hole(S); 0.63 Inch Pad Hole Spacing; Standard, Straight Barrel Type; 542 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210542089
• SKU Name: t&b 54208
