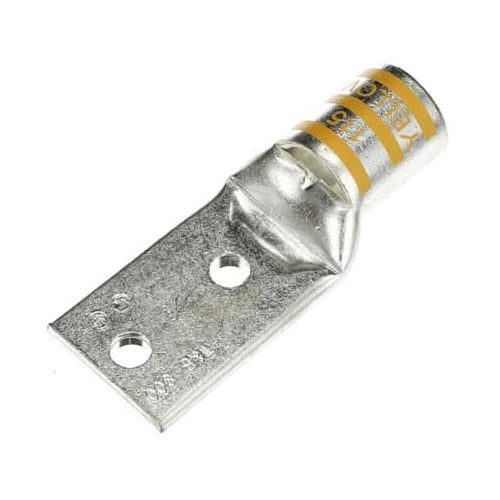

T&B 54226 900Mcm Yellow 2-Hole Copper Lug

Overview

T&B 54226 900Mcm Yellow 2-Hole Copper Lug

Product Specifications

• UPC: 78621054226
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 INCH
• Stud Size: 1/2 INCH
• Color: YELLOW
• Die Index: 115
• Material: ELECTROLYTIC TIN PLATED WROUGHT COPPER
• Overall Length: 5-1/2 INCH
• Approval: UL, CSA
• Catalog Number: 54226
• Brand Name: Color-Keyed[R]
• Model: 542
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 900 KCMIL (CODE), 750/777 (FLEX), 192/24 (FLEX)
• Barrel Type: STANDARD
• Pad Size: 3 INCH L X 2-11/64 INCH W X 5/16 INCH THK
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 900 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 115, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Wrought Copper Material; Yellow Color; 5-1/2 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 900 kcmil (Code), 750/777 (Flex), 192/24 (Flex) Conductor Size; 1/2 Inch Stud Size; 115 Die Index; 3 Inch L X 2-11/64 Inch W X 5/16 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Standard Barrel Type; COLOR-KEYED[R] Brand; 542 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210542263
• SKU Name: t&b 54226
