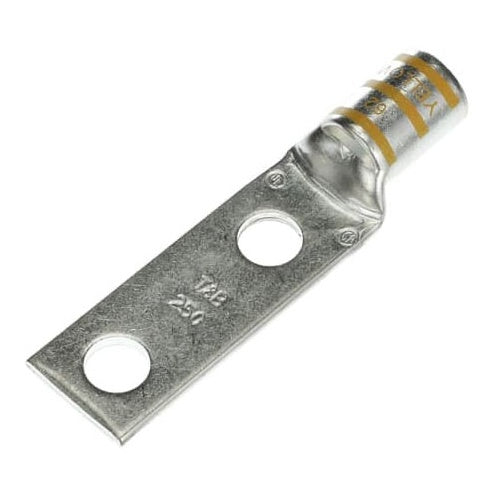

T&B 54275 250Mcm Yellow 2-Hole Copper Lug

Overview

T&B 54275 250Mcm Yellow 2-Hole Copper Lug

Product Specifications

• UPC: 78621054275
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: 62
• Material: High Conductivity Electro Tin Plated Wrought Copper
• Overall Length: 4.19 Inch
• Approval: UL, CSA
• Additional Information: Includes Peep Hole
• Catalog Number: 54275
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 250 KCMIL (Code)
• Barrel Type: Standard, Straight
• Pad Size: 2.81 Inch Length x 1.13 Inch Width x 0.18 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 250 KCMIL, 1/2 INCH BOLT SIZE 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 62, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Copper Material; Yellow Color; 4.19 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 250 kcmil (Code) Conductor Size; 1/2 Inch Stud Size; 62 Die Index; 2.81 Inch Length X 1.13 Inch Width X 0.18 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Standard, Straight Barrel Type; Includes Peep Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210542751
• SKU Name: t&b 54275
