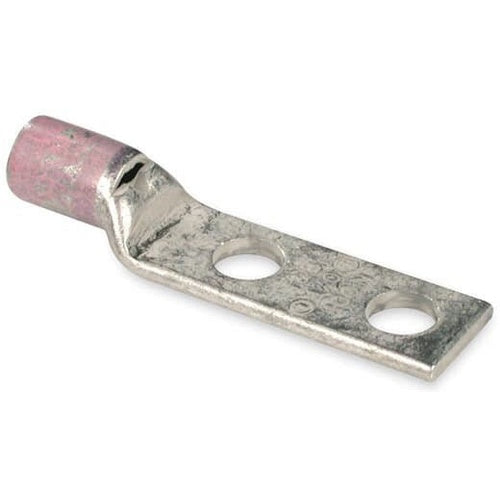

T&B 54291 700Mcm Pink 2-Hole Copper Lug

Overview

T&B 54291 700Mcm Pink 2-Hole Copper Lug

Product Specifications

• UPC: 78621054291
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 99
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 5.81 Inch
• Approval: UL, CSA
• Catalog Number: 54291
• Model: 542
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 700 KCMIL (Code), 500/535 (Flex), 1325/24 (Flex), 500 KCMIL (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 3 Inch L x 1.84 Inch W x 0.23 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 700 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 99, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Pink Color; 5.81 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 700 kcmil (Code), 500/535 (Flex), 1325/24 (Flex), 500 kcmil (Flex) Conductor Size; 1/2 Inch Stud Size; 99 Die Index; 3 Inch L X 1.84 Inch W X 0.23 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; 542 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210542911
• SKU Name: t&b 54291
