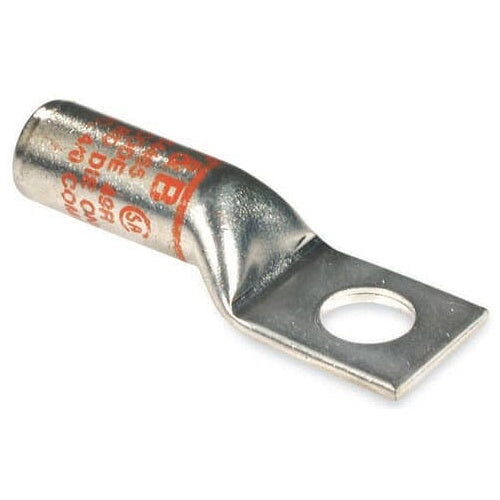

T&B 54409 Copper Tin Plated 1-Hole High-Voltage Lug Long Barrel 1/0 Pink

Overview

T&B 54409 Copper Tin Plated 1-Hole High-Voltage Lug Long Barrel 1/0 Pink

Product Specifications

• UPC: 78621054409
• Color: Pink
• Die Index: 42R
• Material: Tin Plated Copper
• Overall Length: 2.38 Inch
• Approval: UL E9809, CSA
• Additional Information: Wire Strip Length 1-5/8 Inch
• Catalog Number: 54409
• Voltage Rating: 15 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Barrel Type: Long
• Pad Size: 0.75 Inch Width x 0.12 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Catalog Description: COPPER ONE-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 1/0 AWG, 3/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 42R, DIE COLOR CODE PINK ROUNDING
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Pink Color; 2.38 Inch Overall Length; Copper Conductor Material; UL E9809, CSA Approval; 15 Kilovolt Voltage Rating; 1/0 AWG Conductor Size; 3/8 Inch Stud Size; 42R Die Index; 0.75 Inch Width X 0.12 Inch Thickness Pad Size; 1 Pad Hole(S); Long Barrel Type; Wire Strip Length 1-5/8 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544090
• SKU Name: t&b 54409
