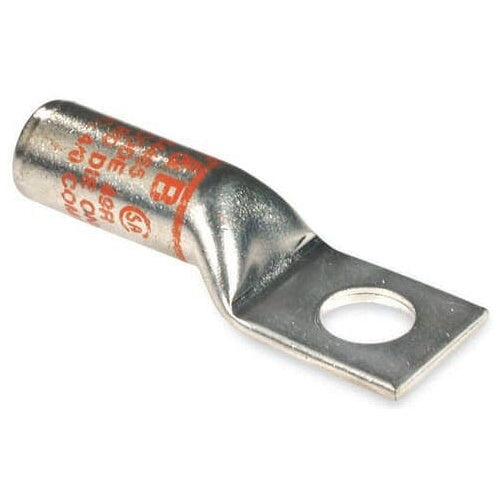

T&B 54460 Copper Tin Plated 1-Hole High-Voltage Lug Long Barrel 2/0 Black

Overview

T&B 54460 Copper Tin Plated 1-Hole High-Voltage Lug Long Barrel 2/0 Black

Product Specifications

• UPC: 78621054460
• Number Of Pad Holes: 1
• Stud Size: 1/2 INCH
• Color: BLACK
• Material: COPPER
• Overall Length: 2.73 INCH
• Approval: UL, CSA
• Catalog Number: 54460
• Brand Name: Color-Keyed.
• Model: 544
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 2/0 AWG
• Barrel Type: TAPERED
• Pad Size: 0.83 INCH W X 0.12 INCH THK
• Catalog Description: COPPER ONE-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 2/0 AWG, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 45R, BLACK ROUNDING
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; Black Color; 2.73 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 2/0 AWG Conductor Size; 1/2 Inch Stud Size; 0.83 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Tapered Barrel Type; Color-Keyed. Brand; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544601
• SKU Name: t&b 54460
