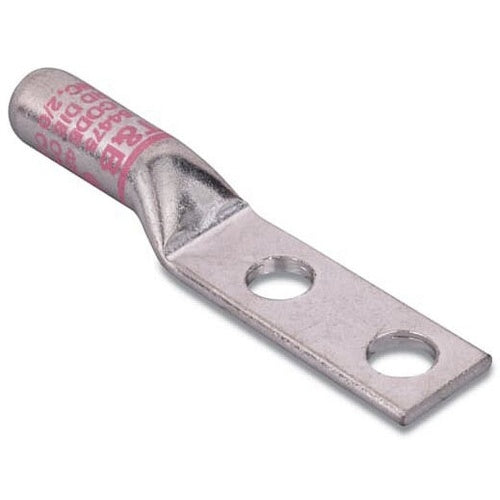

T&B 54475 1/0Awg High-Voltage 2-Hole Copper Lug

Overview

T&B 54475 1/0Awg High-Voltage 2-Hole Copper Lug

Product Specifications

• UPC: 78621054475
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Pink
• Die Index: 42R
• Material: Tin Plated Copper
• Overall Length: 3.56 Inch
• Approval: UL, CSA
• Catalog Number: 54475
• Model: 544
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Barrel Type: Long, Straight, Tapered
• Pad Size: 3 Inch L x 0.77 Inch W x 0.12 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 1/0 AWG, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE CODE 42R, PINK ROUNDING
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Pink Color; 3.56 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG Conductor Size; 3/8 Inch Stud Size; 42R Die Index; 3 Inch L X 0.77 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight, Tapered Barrel Type; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544755
• SKU Name: t&b 54475
