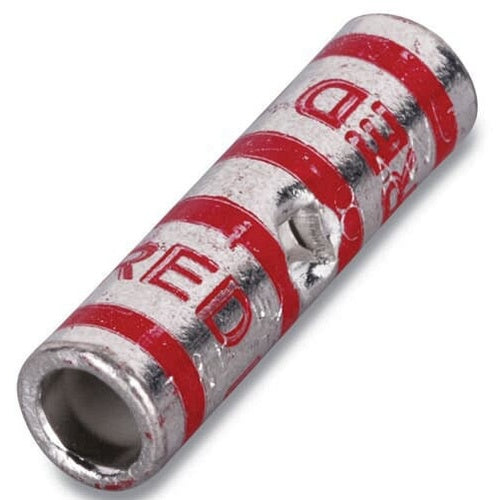

T&B 54504 2-Way Splice Connector No8

Overview

T&B 54504 2-Way Splice Connector No8

Product Specifications

• UPC: 78621054504
• Length: 1 Inch
• Outer Diameter: 0.27 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 21; Strip Length 7/16 Inch
• Catalog Number: 54504
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 8 AWG (Code), 8 AWG (Flex), 8 AWG (Weld, Flex), 37/24 (Flex)
• Conductor Material: Copper
• Color Code: Red
• Barrel Type: Standard
• Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, MAX 35KV, WIRE SIZE 8 AWG, TIN PLATED, DIE CODE 21, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1 Inch; 0.27 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 8 AWG (Code), 8 AWG (Flex), 8 AWG (Weld, Flex), 37/24 (Flex) Conductor Size; Red Color Code; Standard Barrel Type; Die Code 21; Strip Length 7/16 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210545042
• SKU Name: t&b 54504
