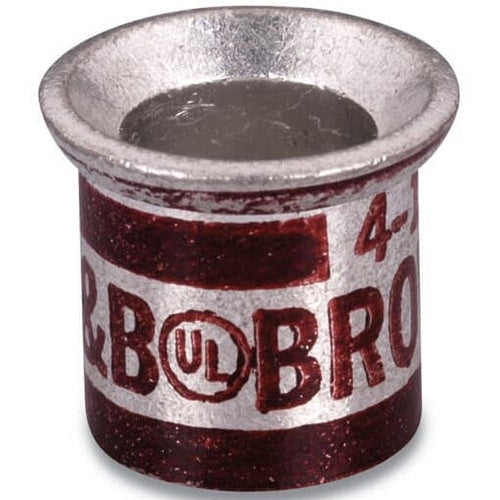

T&B 54625-TB Connector, Compression, Cable Joint

Overview

T&B 54625-TB Connector, Compression, Cable Joint

Product Specifications

• UPC: 78621054625
• Additional Information: Die Code 37
• Catalog Number: 54625-TB
• Conductor Size: 4 AWG Solid/Stranded to (1) 2 AWG Stranded with (2) 12 AWG Solid/Stranded
• Conductor Material: Copper
• Color Code: Green
• Length: 0.479 Inch
• Outer Diameter: 0.545 Inch
• Body Material: Electro Tin Plated High Conductivity Copper
• Approval: UL, CSA
• Catalog Description: COPPER CABLE JOINT, WIRE RANGE MIN: 4 #8 SOL OR STR, MAX: 1 #2 STR WITH 2 #12 SOL OR STR, TIN PLATED, GREEN DIE
• Category: Small Terminals & Connectors
• Full Technical Description: 0.479 Inch; 0.545 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; Electro Tin Plated High Conductivity Copper Body Material; 4 AWG Solid/Stranded to (1) 2 AWG Stranded With (2) 12 AWG Solid/Stranded Conductor Size; Green Color Code; Die Code 37
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121452
• UPC 12 Digit: 786210546254
• SKU Name: t&b 54630
