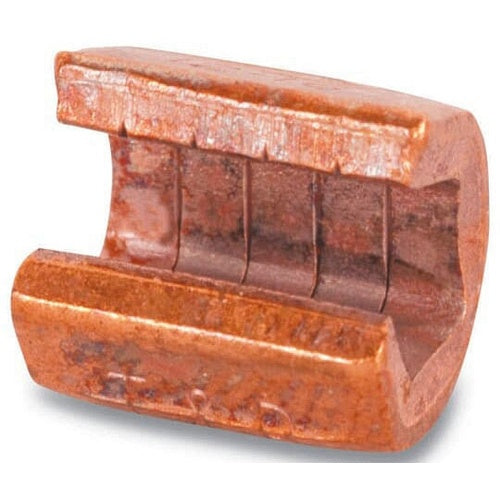

T&B 54705 4-5 Red Copper C-Tap

Overview

T&B 54705 4-5 Red Copper C-Tap

Product Specifications

• UPC: 78621054705
• Maximum Tap Conductor Size: 12 AWG
• Body Material: Wrought High Conductivity Copper
• Approval: UL, CSA
• Additional Information: Color Code Red
• Catalog Number: 54705
• Voltage Rating: 600 V
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 14 AWG
• Maximum Run Conductor Size: 12 AWG
• Minimum Tap Conductor Size: 16 AWG
• Catalog Description: COPPER C-TAP FOR 600V APPLICATIONS, WIRE RANGE MAIN: 14-12, BRANCH 16-14, LENGTH 5/16 INCH, HEIGHT 5/16 INCH, PLAIN FINISH, DIE CODE 21, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: 14 AWG min. Run Conductor Size; 12 AWG Max. Run Conductor Size; 16 AWG min. Tap Conductor Size; 12 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Wrought High Conductivity Copper Body Material; 1 Tap(S); Color Code Red
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547053
• SKU Name: t&b 54705
