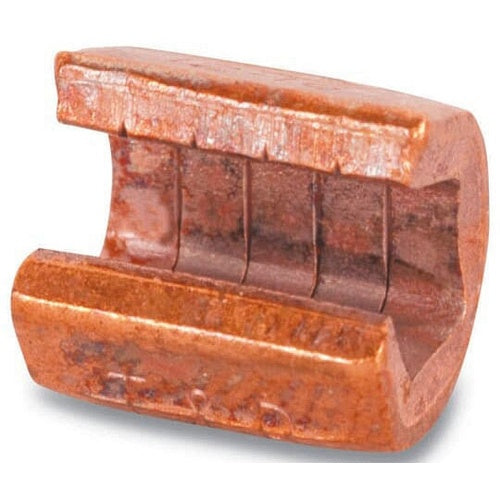

T&B 54715 8-6 Grey Copper C-Tap

Overview

T&B 54715 8-6 Grey Copper C-Tap

Product Specifications

• UPC: 78621054715
• Maximum Tap Conductor Size: 8 AWG
• Die Index: 29
• Body Material: High Conductivity Plain Wrought Copper
• Approval: UL, CSA
• Additional Information: Overall Dimension 9/16 Inch Length x 5/8 Inch Height; Color Gray
• Catalog Number: 54715
• Voltage Rating: 600 Volt
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 8 AWG
• Maximum Run Conductor Size: 6 AWG
• Minimum Tap Conductor Size: 12 AWG
• Catalog Description: COPPER C-TAP, 600V, WIRE RANGE-MAIN: 6-8, BRANCH 8-12, LENGTH 9/16 INCH, HEIGHT 5/8 INCH, DIE CODE 29, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: 8 AWG min. Run Conductor Size; 6 AWG Max. Run Conductor Size; 12 AWG min. Tap Conductor Size; 8 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; High Conductivity Plain Wrought Copper Body Material; 29 Die Index; 1 Tap(S); Overall Dimension 9/16 Inch Length X 5/8 Inch Height; Color Gray
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547152
• SKU Name: t&b 54715
