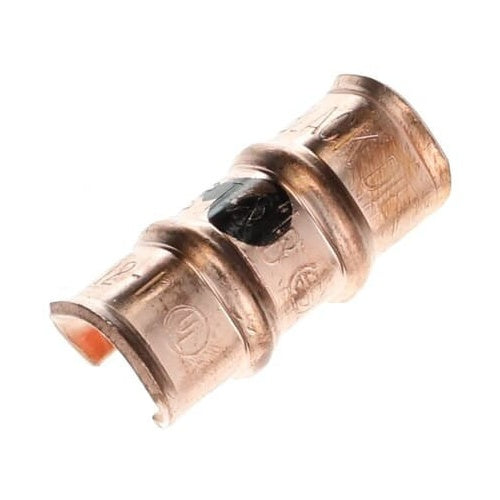

T&B 54735 3-1 Black Copper C-Tap

Overview

T&B 54735 3-1 Black Copper C-Tap

Product Specifications

• UPC: 78621054735
• Minimum Tap Conductor Size: 12 AWG
• Maximum Tap Conductor Size: 3 AWG
• Die Index: 45
• Body Material: Electro Tin Plated High Conductivity Wrought Copper
• Approval: UL, CSA
• Additional Information: COLOR CODE BLACK
• Catalog Number: 54735
• Brand Name: Color-Keyed[R]
• Voltage Rating: 600 Volt
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 3 AWG
• Maximum Run Conductor Size: 1 AWG
• Catalog Description: COPPER C-TAP, 600V, WIRE RANGE-MAIN: 3-1, BRANCH 3-12, LENGTH 1-11/16 INCH, 7/8 INCH, DIE CODE 45, DIE COLOR CODE BLACK
• Category: Large Terminals & Connectors
• Full Technical Description: 3 AWG min. Run Conductor Size; 1 AWG Max. Run Conductor Size; 12 AWG min. Tap Conductor Size; 3 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; Electro Tin Plated High Conductivity Wrought Copper Body Material; 45 Die Index; 1 Tap(S); COLOR-KEYED[R] Brand; Color Code Black
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547350
• SKU Name: t&b 54735
