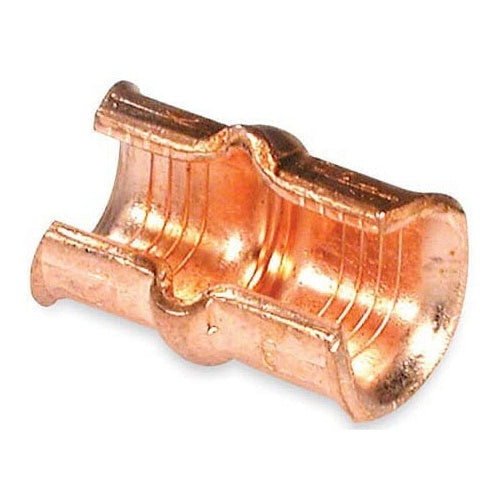

T&B 54750 1/0-3/0 Yellow Copper C-Tap

Overview

T&B 54750 1/0-3/0 Yellow Copper C-Tap

Product Specifications

• UPC: 78621054750
• Maximum Tap Conductor Size: 1/0 AWG
• Die Index: 62
• Body Material: High Conductivity Plain Wrought Copper
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-11/16 Inch Length x 1-1/16 Inch Height; Color Yellow
• Catalog Number: 54750
• Voltage Rating: 600 Volt
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 1/0 AWG
• Maximum Run Conductor Size: 3/0 AWG
• Minimum Tap Conductor Size: 2 AWG
• Catalog Description: COPPER C-TAP FOR 600V APPLICATIONS, WIRE RANGE MAIN: 3/0-1/0, BRANCH 2-1/0, LENGTH 1-11/16 INCH, HEIGHT 1-3/16 INCH, PLAIN FINISH, DIE CODE 62, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG min. Run Conductor Size; 3/0 AWG Max. Run Conductor Size; 2 AWG min. Tap Conductor Size; 1/0 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; High Conductivity Plain Wrought Copper Body Material; 62 Die Index; 1 Tap(S); Overall Dimension 1-11/16 Inch Length X 1-1/16 Inch Height; Color Yellow
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547503
• SKU Name: t&b 54750
