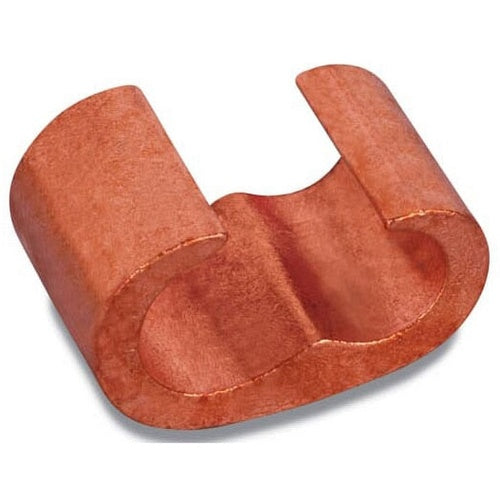

T&B 54755 1-4/0 Blue Copper C-Tap

Overview

T&B 54755 1-4/0 Blue Copper C-Tap

Product Specifications

• UPC: 78621054755
• Maximum Tap Conductor Size: 2/0 AWG
• Die Index: 76
• Body Material: High Conductivity Plain Wrought Copper
• Approval: UL, CSA
• Additional Information: Overall Dimension 3/4 Inch Width x 1-15/16 Inch Height; Color Blue; Number of Crimps 1
• Catalog Number: 54755
• Voltage Rating: 600 Volt
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 1 AWG
• Maximum Run Conductor Size: 4/0 AWG
• Minimum Tap Conductor Size: 8 AWG
• Catalog Description: COPPER C-TAP, WIRE RANGE MAIN: 1-4/0 BRANCH 2/0-8, PLAIN FINISH, DIE CODE 76, DIE COLOR CODE BLUE, NUMBER OF CRIMPS 2
• Category: Large Terminals & Connectors
• Full Technical Description: 1 AWG min. Run Conductor Size; 4/0 AWG Max. Run Conductor Size; 8 AWG min. Tap Conductor Size; 2/0 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; High Conductivity Plain Wrought Copper Body Material; 76 Die Index; 1 Tap(S); Overall Dimension 3/4 Inch Width X 1-15/16 Inch Height; Color Blue; Number of Crimps 1
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547558
• SKU Name: t&b 54755
