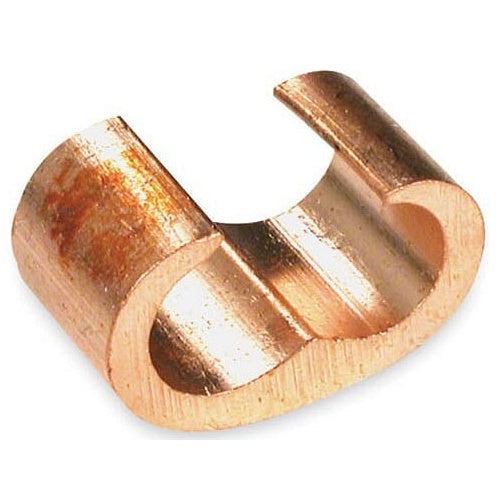

T&B 54765 2/0-300 Pink Copper C-Tap

Overview

T&B 54765 2/0-300 Pink Copper C-Tap

Product Specifications

• UPC: 78621054765
• Maximum Tap Conductor Size: 2/0 AWG
• Die Index: 99H
• Body Material: High Conductivity Plain Wrought Copper
• Approval: UL, CSA
• Additional Information: Overall Dimension 1 Inch Width x 1-11/16 Inch Height; Color Pink; Number of Crimps 2
• Catalog Number: 54765
• Voltage Rating: 600 Volt
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 2/0 AWG
• Maximum Run Conductor Size: 300 KCMIL
• Minimum Tap Conductor Size: 8 AWG
• Catalog Description: COPPER C-TAP FOR 600V APPLICATIONS, LARGE SIZE, WIRE RANGE MAIN: 2/0-300 KCMIL, BRANCH 2/0-#8, LENGTH 1 INCH, HEIGHT 1-11/16 INCH, PLAIN FINISH, DIE CODE 99H, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: 2/0 AWG min. Run Conductor Size; 300 kcmil Max. Run Conductor Size; 8 AWG min. Tap Conductor Size; 2/0 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; High Conductivity Plain Wrought Copper Body Material; 99H Die Index; 1 Tap(S); Overall Dimension 1 Inch Width X 1-11/16 Inch Height; Color Pink; Number of Crimps 2
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547657
• SKU Name: t&b 54765
