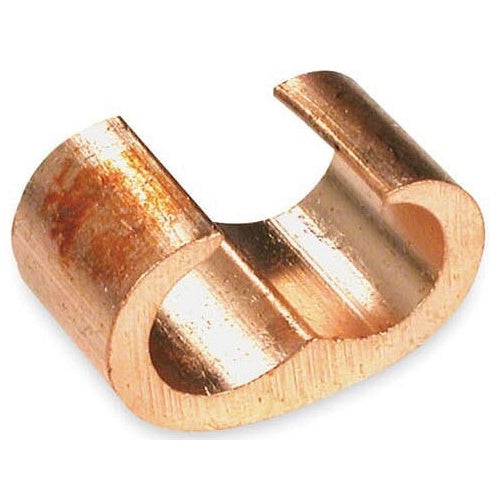

T&B 54775 250-500 Yellow Copper C-Tap

Overview

T&B 54775 250-500 Yellow Copper C-Tap

Product Specifications

• UPC: 78621054775
• Maximum Tap Conductor Size: 350 KCMIL
• Die Index: 115H
• Body Material: Wrought High Conductivity Copper
• Approval: UL, CSA
• Additional Information: Color Code Yellow
• Catalog Number: 54775
• Voltage Rating: 600 V
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 6 AWG
• Catalog Description: COPPER C-TAP, WIRE RANGE MAIN: 250-500 BRANCH 350-6 (#6 AWG BRANCH MUST BE DOUBLED), PLAIN FINISH, DIE CODE 115H, DIE COLOR CODE YELLOW, NUMBER OF CRIMPS 2
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 6 AWG min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Wrought High Conductivity Copper Body Material; 115H Die Index; 1 Tap(S); Color Code Yellow
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547756
• SKU Name: t&b 54775
