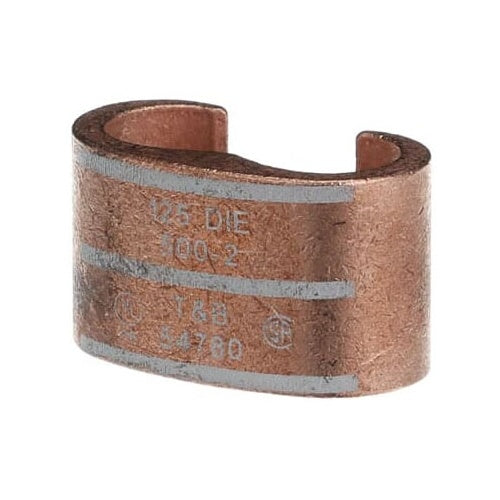

T&B 54780 350-500 White Copper C-Tap

Overview

T&B 54780 350-500 White Copper C-Tap

Product Specifications

• UPC: 78621054780
• Maximum Tap Conductor Size: 500 KCMIL
• Die Index: 125H
• Body Material: Wrought High Conductivity Copper
• Approval: UL, CSA
• Additional Information: Color Code White
• Catalog Number: 54780
• Voltage Rating: 600 V
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 350 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 2 AWG
• Catalog Description: COPPER C-TAP, WIRE RANGE MAIN: 350-500 BRANCH 500-2, DIE CODE 125H, PLAIN FINISH, DIE COLOR CODE N/A, NUMBER OF CRIMPS 2
• Category: Large Terminals & Connectors
• Full Technical Description: 350 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 2 AWG min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Wrought High Conductivity Copper Body Material; 125H Die Index; 1 Tap(S); Color Code White
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210547800
• SKU Name: t&b 54780
