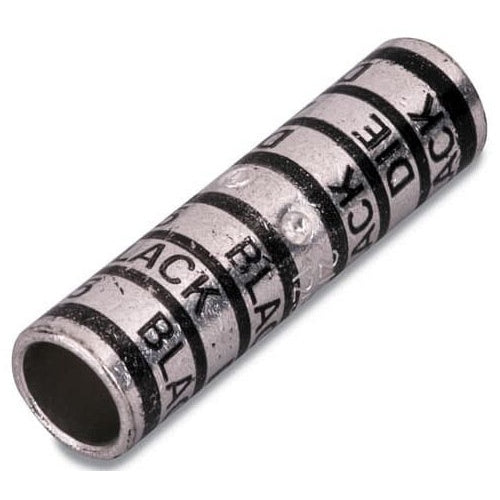

T&B 54804 8Awg 2-Way Copper Connector

Overview

T&B 54804 8Awg 2-Way Copper Connector

Product Specifications

• UPC: 78621054804
• Length: 1.75 Inch
• Outer Diameter: 0.27 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 21; Strip Length 3/4 Inch
• Catalog Number: 54804
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 8 AWG (Code), 14.9 KCMIL (37/24 Flex)
• Conductor Material: Copper
• Color Code: Red
• Barrel Type: Long
• Catalog Description: COPPER TWO-WAY SPLICE, LONG BARREL, MAX 35KV, WIRE SIZE #8 AWG, LENGTH 1.75 INCHES, DIAMETER 0.27 INCH, TIN PLATED, DIE CODE 21, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1.75 Inch; 0.27 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 8 AWG (Code), 14.9 kcmil (37/24 Flex) Conductor Size; Red Color Code; Long Barrel Type; Die Code 21; Strip Length 3/4 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210548043
• SKU Name: t&b 54804
