T&B 54807 2Awg 2-Way Copper Connector

Overview

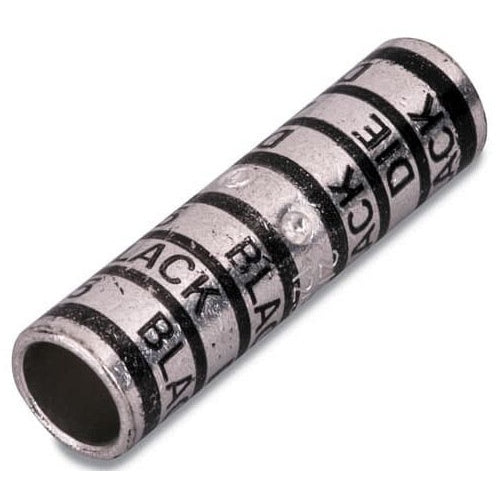

T&B 54807 2Awg 2-Way Copper Connector

Product Specifications

• UPC: 78621054807
• Length: 1.88 Inch
• Outer Diameter: 0.43 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 33; Strip Length 7/8 Inch
• Catalog Number: 54807
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 2 AWG (Code), 50.4 KCMIL (125/24 Flex)
• Conductor Material: Copper
• Color Code: Brown
• Barrel Type: Long
• Catalog Description: COPPER TWO-WAY SPLICE, LONG BARREL, MAX 35KV, WIRE SIZE #2 AWG, LENGTH 1.88 INCHES, DIAMETER 0.43 INCHES, TIN PLATED, DIE CODE 33, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1.88 Inch; 0.43 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 2 AWG (Code), 50.4 kcmil (125/24 Flex) Conductor Size; Brown Color Code; Long Barrel Type; Die Code 33; Strip Length 7/8 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210548074
• SKU Name: t&b 54807
