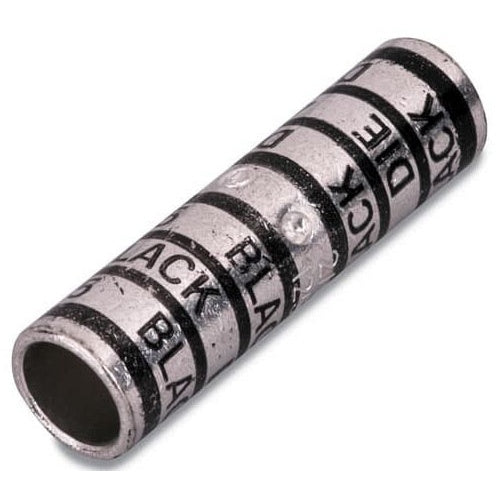

T&B 54809 1/0 2-Way Copper Connector

Overview

T&B 54809 1/0 2-Way Copper Connector

Product Specifications

• UPC: 78621054809
• Length: 2 Inch
• Outer Diameter: 0.54 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 42; Strip Length 1 Inch
• Catalog Number: 54809
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 1/0 AWG (Code), 90.8 KCMIL (225/24 Flex)
• Conductor Material: Copper
• Color Code: Pink
• Barrel Type: Long
• Catalog Description: COPPER TWO-WAY SPLICE, LONG BARREL, MAX 35KV, WIRE SIZE 1/0 AWG, LENGTH 2.0 INCHES, DIAMETER 0.54 INCH, TIN PLATED, DIE CODE 42, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 2 Inch; 0.54 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 1/0 AWG (Code), 90.8 kcmil (225/24 Flex) Conductor Size; Pink Color Code; Long Barrel Type; Die Code 42; Strip Length 1 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210548098
• SKU Name: t&b 54809
