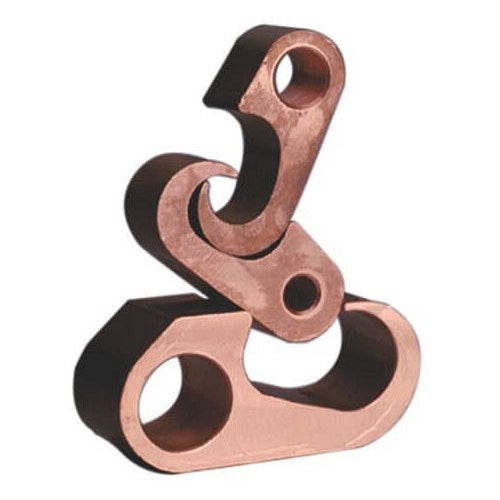

T&B 54855 Fig 6 Connector 1/0-250 Main, 4-2 Tap

Overview

T&B 54855 Fig 6 Connector 1/0-250 Main, 4-2 Tap

Product Specifications

• UPC: 78621017950
• Maximum Tap Conductor Size: 2 AWG Stranded
• Body Material: Copper
• Approval: UL, CSA
• Additional Information: Rod Size 1/2 to 5/8 Inch
• Catalog Number: 54855
• Brand Name: E-Z-Ground[R]
• Model: 6
• Shape: 6
• Conductor Material: Copper
• Minimum Run Conductor Size: 1/0 AWG Stranded
• Maximum Run Conductor Size: 250 KCMIL
• Minimum Tap Conductor Size: 4 AWG Stranded
• Catalog Description: E-Z-GROUND FIGURE 6 COPPER COMPRESSION GROUND TAP CONNECTOR FOR CABLE RANGE #4 SOL. - #2 STR., APPLICATION / MAIN 1/0 STR.-250 KCMIL OR 1/2 INCH - 5/8 INCH ROD, GROUND ROD #3 REBAR 3/8 THRU 1/2 #4 REBAR
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG Stranded min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 4 AWG Stranded min. Tap Conductor Size; 2 AWG Stranded Max. Tap Conductor Size; 6 Shape; Copper Conductor Material; UL, CSA Approval; Copper Body Material; EZGROUND[TM] Brand; Rod Size 1/2 to 5/8 Inch; 6 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121448
• UPC 12 Digit: 786210179506
• SKU Name: t&b 54855
