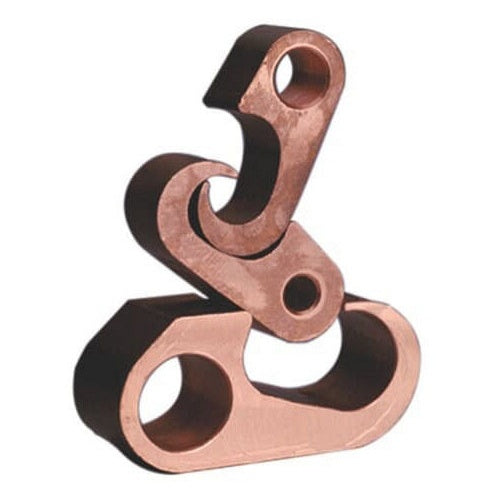

T&B 54895 Fig 6 Connector 250-500 Main, 3/0-250

Overview

T&B 54895 Fig 6 Connector 250-500 Main, 3/0-250

Product Specifications

• UPC: 78621017903
• Grounding Rod Size: 5/8 to 3/4 Inch
• Application: Direct Burial, Cable to Ground Rod/Rebar
• Approval: UL, CSA
• Catalog Number: 54895
• Brand Name: E-Z-Ground[R]
• Type: Tap
• Number Of Contacts: 2
• Width: 3/4 Inch
• Height: 2-3/16 Inch
• Material: Copper
• Conductor Size: 250 to 500 KCMIL (Main), 3/0 AWG Stranded to 250 KCMIL (Tap)
• Catalog Description: E-Z-GROUND FIGURE 6 COPPER COMPRESSION GROUND TAP CONNECTOR FOR CABLE RANGE 3/0 STR. - 250 KCMIL, APPLICATION / MAIN 250 KCMIL-500 KCMIL OR 5/8 INCH - 3/4 INCH ROD, GROUND ROD #5 REBAR 5/8 THRU 3/4 #6 REBAR
• Category: Large Terminals & Connectors
• Full Technical Description: Tap Type; Copper Material; 3/4 Inch; 2-3/16 Inch; UL, CSA Approval; Direct Burial, Cable to Ground Rod/Rebar Application; 250 to 500 kcmil (Main), 3/0 AWG Stranded to 250 kcmil (Tap) Conductor Size; 2 Contact(S); 5/8 to 3/4 Inch Grounding Rod Size; EZGROUND[TM] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Connector
• Unspsc: 39121448
• UPC 12 Digit: 786210179032
• SKU Name: t&b 54895
