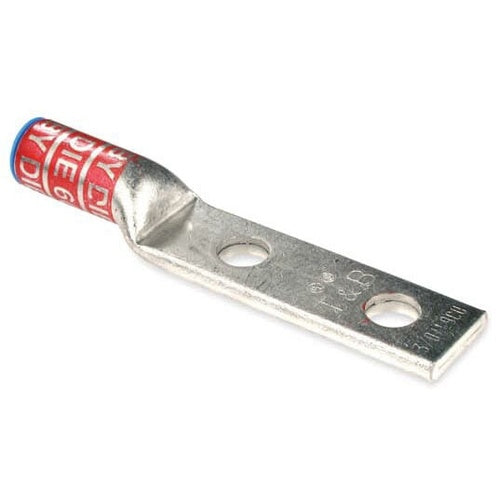

T&B 60254 250Mcm Red 2-Hole Aluminum/Copper Lug

Overview

T&B 60254 250Mcm Red 2-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060254
• Stud Size: 3/8 Inch
• Color: Red
• Die Index: 71
• Material: High Conductivity Electro Tin Plated Wrought Aluminum
• Overall Length: 4.73 Inch
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
• Catalog Number: 60254
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 250 KCMIL (Code)
• Barrel Type: Long, Straight
• Pad Size: 1.93 Inch Length x 1.29 Inch Width x 0.27 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Catalog Description: ALUMINUM TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 250 KCMIL WIRE, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE CODE 71H, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Aluminum Material; Red Color; 4.73 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 250 kcmil (Code) Conductor Size; 3/8 Inch Stud Size; 71 Die Index; 1.93 Inch Length X 1.29 Inch Width X 0.27 Inch Thickness Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210602547
• SKU Name: t&b 60254
