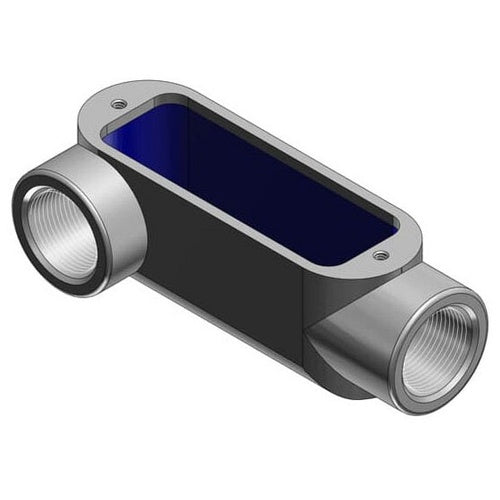

T&B LR28 3/4" Conduit Body, Iron, LR, Form-8

Overview

T&B LR28 3/4" Conduit Body, Iron, LR, Form-8

Product Specifications

• UPC: 78621016597
• Size: 5.56 Inch Length x 1.69 Inch Width x 2.31 Inch Height
• Installation: Threaded
• Material: Zinc Plated with Epoxy Powder Coated Gray Iron
• Form Type: Form 8
• Approval: UL 514A/514B/E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Includes (2) Mounting Hole; Applicable Standard Federal Specification WC-586D
• Catalog Number: LR28
• Brand Name: BlueKote[R]
• Model: LR
• Access Opening: Side
• Configuration: LR
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 3/4 Inch
• Catalog Description: 3/4 INCH FORM 8, LR CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray Iron With Zinc Plated/Epoxy Powder Coated Backed/Bluekote Non-Stick Internal Material; 5.56 Inch Length X 2.31 Inch Width X 1.69 Inch Height Size; Rigid/Imc Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL E2969/514A/514B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Right Side Access Opening
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210165974
• SKU Name: t&b lr28
