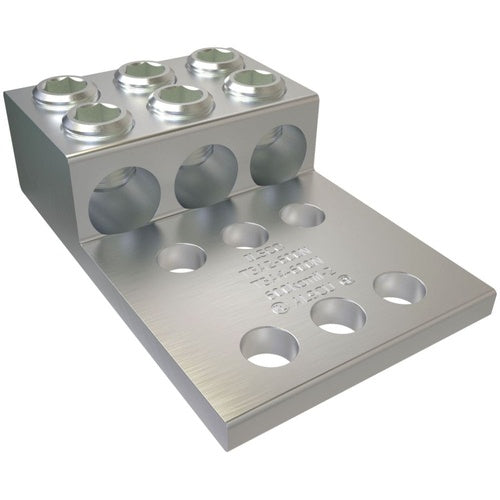

ILSCO T3A2-600N Aluminum/Copper 3-Conductor Lug

Overview

Ilsco T3A2-600N Aluminum/Copper 3-Conductor Lug

Product Specifications

• UPC: 78366990057
• Screw Type: 3/8 Inch Hex
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Number Of Pad Holes: 6
• Pad Size: 3-1/4 Inch L x 3-1/2 Inch W x 3/8 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 5-1/2 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Size 1-1/2 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 1
• Catalog Number: T3A2-600N
• Model: T3A
• Type: Chamfered Wire Entry
• Number Of Conductors: 3
• Minimum Conductor Size: 2 AWG
• Maximum Conductor Size: 600 KCMIL
• Conductor Material: Aluminum/Copper
• Pad Type: Straight
• Catalog Description: ALUMINUM MECHANICAL LUG, DUAL RATED, CONDUCTOR RANGE 600-2, 3 PORTS, 6 HOLES, 1/2IN BOLT SIZE, 1-3/4IN HOLE SPACING, TIN PLATED, UL, CSA, SAME AS T3A4-600N
• Category: Large Terminals & Connectors
• Full Technical Description: Chamfered Wire Entry Type; Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 5-1/2 Inch Overall Length; 2 AWG min. Conductor Size; 600 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 3-1/4 Inch L X 3-1/2 Inch W X 3/8 Inch Thk Pad Size; 6 Pad Hole(S); Straight Pad Type; 3/8 Inch Hex Screw Type; Size 1-1/2 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 1; T3A Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669900576
• SKU Name: t3a2600n ilsco
