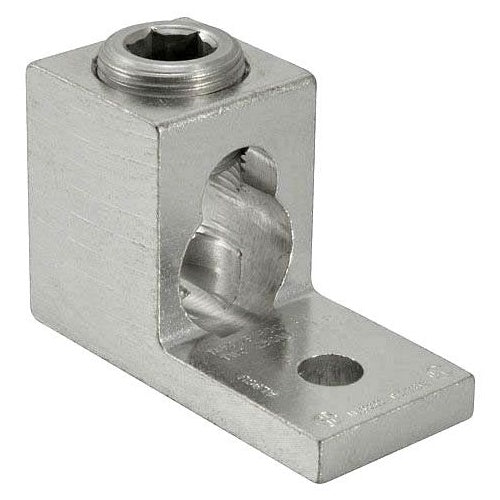

ILSCO TA-500-S 4-600mcm Aluminum/Copper Lug

Overview

Ilsco TA-500-S 4-600mcm Aluminum/Copper Lug

Product Specifications

• UPC: 78366989144
• Material: Electro Tin Plated High Strength 6061-T6 Aluminum Alloy
• Number Of Pad Holes: 1
• Pad Size: 1-1/2 Inch Length x 1-5/16 Inch Width x 5/16 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 2-13/16 Inch
• Approval: UL 453G/486A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 2-3/16 Inch; Voltage Rating 35 Kilovolt; Temperature Rating 90 Deg C
• Catalog Number: TA-500-S
• Model: TA
• Type: Chamfered Wire Entry, Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: (1) 4 AWG, (2) 1/0 AWG
• Maximum Conductor Size: (1) 600 KCMIL, (2) 250 KCMIL
• Conductor Material: Copper/Aluminum
• Screw Type: 1/2 Inch Hex Head
• Catalog Description: ALUMINUM MECHANICAL LUG, CONDUCTOR RANGE 600-4, 1 PORT, 1 HOLE, 3/8IN BOLT SIZE, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Chamfered Wire Entry Type; Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 2-13/16 Inch Overall Length; (1) 4 AWG, (2) 1/0 AWG min. Conductor Size; (1) 600 kcmil, (2) 250 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1-1/2 Inch L X 1-5/16 Inch W X 5/16 Inch Thk Pad Size; 1 Pad Hole(S); Straight Pad Type; 1/2 Inch Hex Screw Type; Temperature Rating 90 Deg C; Packaging Quantity 6; TA Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669891447
• SKU Name: ta500s ilsco
