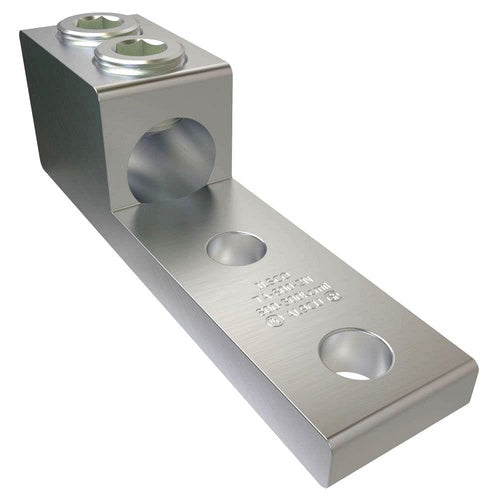

ILSCO TA-800-2N 300-800mcm Aluminum/Copper Lug

Overview

Ilsco TA-800-2N 300-800mcm Aluminum/Copper Lug

Product Specifications

• UPC: 78366989340
• Screw Type: (2) 1/2 Inch Hex
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Number Of Pad Holes: 2
• Pad Size: 3-5/8 Inch L x 1-1/2 Inch W x 1/2 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 5.97 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Temperature Rating 90 Deg C; Packaging Quantity 3
• Catalog Number: TA-800-2N
• Model: TA
• Type: Chamfered Wire Entry
• Number Of Conductors: 1
• Minimum Conductor Size: 300 KCMIL
• Maximum Conductor Size: 800 KCMIL
• Conductor Material: Aluminum/Copper
• Pad Type: Straight
• Catalog Description: ALUMINUM MECHANICAL LUG, DUAL RATED, CONDUCTOR RANGE 800-300, 1 PORT, 2 HOLES, 1/2IN BOLT SIZE, 1-3/4IN HOLE SPACING, 2 SCREWS, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Chamfered Wire Entry Type; Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 5.97 Inch Overall Length; 300 kcmil min. Conductor Size; 800 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 3-5/8 Inch L X 1-1/2 Inch W X 1/2 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; (2) 1/2 Inch Hex Screw Type; Temperature Rating 90 Deg C; Packaging Quantity 3; TA Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669893403
• SKU Name: ta8002n ilsco
