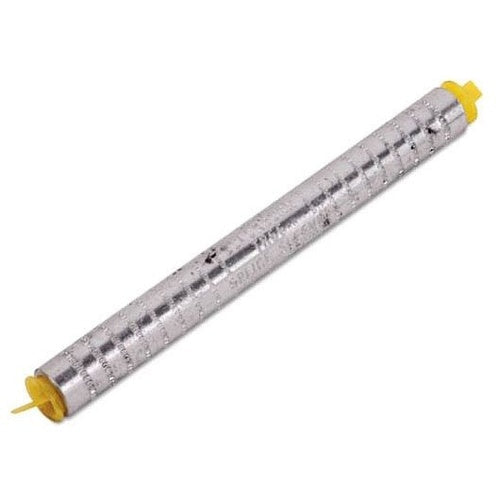

Blackburn TR64 2Str Triplex Neutral Splice

Overview

Blackburn TR64 2Str Triplex Neutral Splice

Product Specifications

• UPC: 78378610147
• Additional Information: DIE SIZE 5/8 INCH; CONDUCTOR SIZE 0.292 TO 0.316 INCH DIA; CAP COLOR RED
• Catalog Number: TR64
• Model: TR
• Conductor Size: 2 AWG (ACSR), 2 AWG STRANDED
• Conductor Material: ALUMINUM
• Color Code: RED
• Barrel Type: LONG
• Length: 4-1/4 INCH
• Body Material: ALUMINUM
• Catalog Description: ALUMINUM 4-1/4 INCH SERVICE ENTRANCE COMPRESSION SPLICE FOR WIRE RANGE 2 ASCR, 2 STRANDED, DIES: 5/8, TU, 8A, 243, 52. PRE-FILLED WITH OXIDE INHIBITOR WITH RED CAPS. FOR ALUMINUM CONDUCTORS
• Category: Large Terminals & Connectors
• Full Technical Description: 4-1/4 Inch; Aluminum Conductor Material; Aluminum Body Material; 2 AWG (ACSR), 2 AWG Stranded Conductor Size; Red Color Code; Long Barrel Type; Die Size 5/8 Inch; Conductor Size 0.292 to 0.316 Inch Dia; Cap Color Red; TR Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783786101474
• SKU Name: tr64 blackburn

Resources

• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
