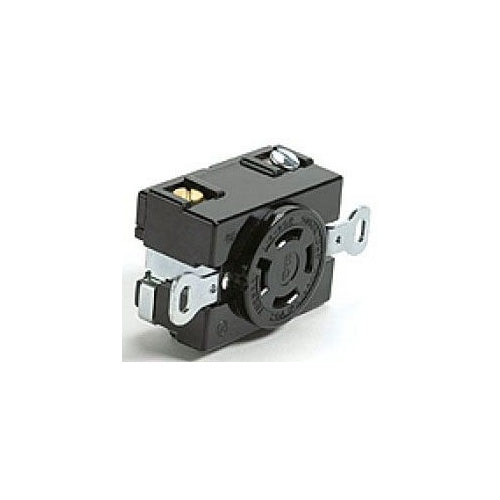

Woodhead 4976CR 1301490086 L16-30R Single Receptacle

Overview

Woodhead 4976CR 1301490086 L16-30R Single Receptacle

Product Specifications

• UPC: 78678873976
• Number Of Poles: 3
• Number Of Wires: 4
• Material: Rugged Nylon
• Approval: UL, CSA
• Additional Information: Application Industrial; Temperature Rating -40 to 75 Deg C
• Catalog Number: 4976CR
• Brand Name: Safeway[R]
• Model: 130149
• Type: Single Locking
• Constructional Feature: Corrosion Resistant
• Configuration: L16-30R
• Voltage Rating: 480 V 3-Phase
• Current Rating: 30 Ampere
• Catalog Description: SAFEWAY SINGLE CORROSION RESISTANT RECEPTACLE WITH LOCKING BLADE, 3 POLE/4 WIRE, NEMA L16-30, 3 480V
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Rugged Nylon Material; L16-30R Configuration; 4 Wire(S); UL, CSA Approval; 480 V 3-Phase Voltage Rating; 30 Ampere Current Rating; 3 Pole(S); Corrosion Resistant; SAFEWAY[R] Brand; Application Industrial; Temperature Rating -40 to 75 Deg C; 130149 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Receptacle
• Unspsc: 39121402
• UPC 12 Digit: 786788739768
• SKU Name: wood 4976cr

Resources

• Manufacturer Spec Sheet
