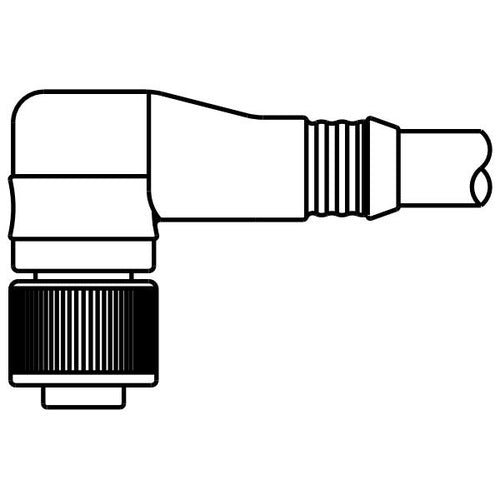

Woodhead 804001A09M050 1200651558 4P 5 Meter Cordset

Overview

Woodhead 804001A09M050 1200651558 4P 5 Meter Cordset

Product Specifications

• Brand Name: Brad
• Type: Single Ended
• Voltage Rating: 250 VAC//VDC
• __Orientation: 90 to Straight
• Color: Yellow
• Conductor Range: 22
• Environmental Conditions: IP67
• Finish: E152210
• Material: PVC
• Size: 5.0m (16.40)
• Sub Brand: Micro-Change (M12)
• Temperature Rating: -20C to +105C
• Catalog Description: MICRO-CHANGE (M12) SINGLE-ENDED CORDSET, 4 POLES, FEMALE (90) TO PIGTAIL, 22 AWG, PVC CABLE, 5.0M (16.40') LENGTH
• Category: Cords Sets
• Full Technical Description: Female Type; Die Cast Epoxy Coated Zinc Coupling Nut, Gold Over Palladium/Nickel Plated Copper Alloy Contact, Molded PVC Body, Nitrile Rubber O-ring, Nylon 6/6 Plug Face, PVC Insulator Material; Yellow Color; 16.4 ft; 16.4 Length in ft; 4.9987 Length in Meters; 22 AWG, Stranded Copper Conductor, PVC Jacket Cable Type; UL, CSA Approval; Modular Control, Tubular Photoelectric Sensor, Tubular Proximity Sensor Application; 250 V Voltage Rating; 90 Deg Connector Type; NEMA 6P, IP68 Enclosure; 4 Ampere Current Rating; 4 Pole(S); Single Keyway Type; 1-Brown 2-White 3-Blue 4-Black Wire Code; MICRO-CHANGE[R] Brand; Applicable Standard VDE 0110; Environmental Conditions Corrosion Resistant, Vibration Resistant; Operating Temperature -20 to 90 Deg C; Length in ft - Uom ft; Length in Meters - Uom M
• Manufacturer: Woodhead
• Manufacturer Brand: Electrical/Industrial/Network/Passive
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 39121413
• UPC 12 Digit: 781725534062
• SKU Name: wood 804001a09m050

Resources

• Manufacturer Spec Sheet
• Technical Drawing
