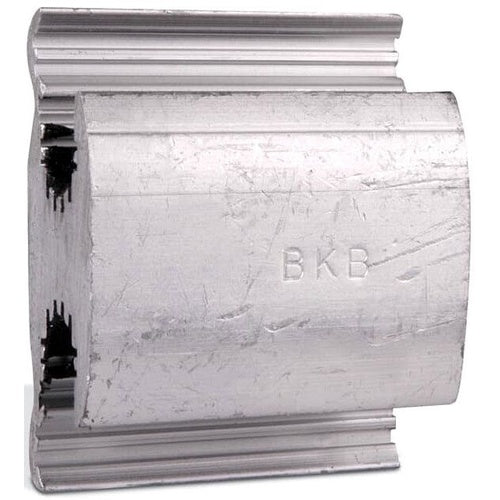

Blackburn WR299 Aluminum H-Type Compression Connector 2/0-1/0Ascr 43927

Overview

Blackburn WR299 Aluminum H-Type Compression Connector 2/0-1/0Ascr 43927

Product Specifications

• UPC: 78378610005
• Die Index: D
• Body Material: 1350 ALUMINUM ALLOY
• Additional Information: APPLICABLE STANDARD ANSI C119.4
• Catalog Number: WR299
• Model: WR
• Shape: H
• Conductor Material: ALUMINUM/COPPER
• Minimum Run Conductor Size: 1/0 AWG ACSR, 2/0 AWG STRANDED (STANDARD), 2/0 AWG ASCR, 3/0 AWG STRANDED (COMPACT)
• Maximum Run Conductor Size: 2/0 AWG ACSR, 3/0 AWG STRANDED (STANDARD), 3/0 AWG ACSR, STRANDED (COMPACT)
• Minimum Tap Conductor Size: 6 AWG ACSR, STRANDED, SOLID (STANDARD), 6 AWG ASCR, STRANDED (COMPACT)
• Maximum Tap Conductor Size: 4 AWG ACSR, 3 AWG STRANDED, 2 AWG SOLID (STANDARD), 4 AWG ACSR, 2 AWG STRANDED (COMPACT)
• Catalog Description: ALUMINUM WIDE RANGE H-TYPE COMPRESSION CONNECTOR MAIN: 2/0 - 1/0 ACSR, 3/0 - 2/0 STR., TAP: 4-6 ACSR, 3-6 STR., 2-6 SOL., DIE: D, D3
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG ACSR, 2/0 AWG Stranded (Standard), 2/0 AWG Ascr, 3/0 AWG Stranded (Compact) min. Run Conductor Size; 2/0 AWG ACSR, 3/0 AWG Stranded (Standard), 3/0 AWG ACSR, Stranded (Compact) Max. Run Conductor Size; 6 AWG ACSR, Stranded, Solid (Standard), 6 AWG Ascr, Stranded (Compact) min. Tap Conductor Size; 4 AWG ACSR, 3 AWG Stranded, 2 AWG Solid (Standard), 4 AWG ACSR, 2 AWG Stranded (Compact) Max. Tap Conductor Size; H Shape; Aluminum/Copper Conductor Material; 1350 Aluminum Alloy Body Material; D Die Index; WR[TM] Wide Range Brand; Applicable Standard ANSI C119.4; WR Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 783786100057
• SKU Name: wr299 blackburn
