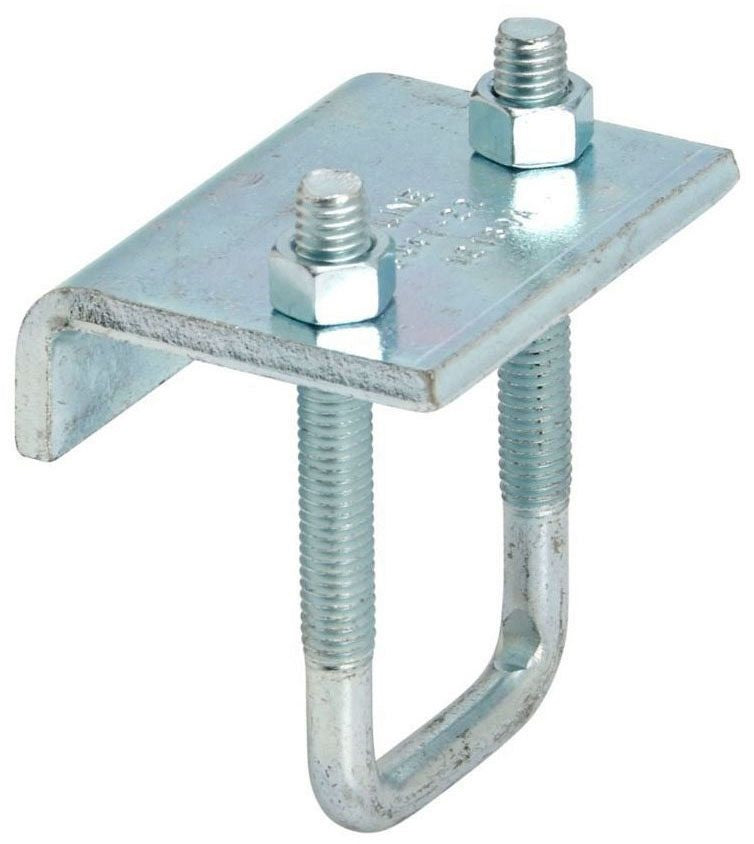

B-Line B441-22HDG Beam ClAMP, 3/4" Max Flange, 13/16" To 1-5/8" High Channel, Hd

Overview

B-Line B441-22HDG Beam Clamp, 3/4" Max Flange, 13/16" To 1-5/8" High Channel, Hd

Product Specifications

• UPC: 78101155284
• Application: Beam, Channel, Strut System
• Additional Information: Overall Dimension 3 Inch Length x 1-7/8 Inch Width x 3-3/8 Inch Height; Recommended Torque 150 Inch-Pound
• Catalog Number: B441-22HDG
• Model: B441-22
• Type: Single U
• Maximum Jaw Capacity: 3/4 Inch
• Load Capacity: 1200 Pound (Pair)
• Material: Low Carbon Steel
• Material Specification: ASTM A653/B633
• Finish: Zinc Electroplated
• Catalog Description: EATON B-LINE SERIES BEAM CLAMPS, 3.3750" H X 3" L X 2.3750" W, 1850 LBS LOAD CAP, 0.75" BEAM THICKNESS, HOT-DIPPED GALV
• Category: Channel & Strut Fittings
• Full Technical Description: Single U Type; Carbon Steel Material; Hot Dip Galvanized Finish; 3/4 Inch Max. Jaw Capacity; Channel Application; ASTM A123 Material Specification; 1200 lb Load Capacity; Overall Dimension 2-3/8 Inch L X 3 Inch W; B441-22 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Beam Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011552848
• SKU Name: b44122hdg
