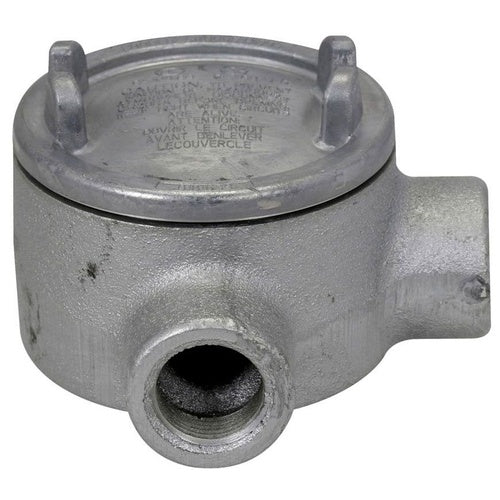

Crouse-Hinds GUAM69 2" Guam Conduit Body & Cover

Overview

Crouse-Hinds GUAM69 2" Guam Conduit Body & Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET GUA CONDUIT OUTLET BOX WITH COVER, 5" COVER OPENING DIAMETER, FERALOY IRON ALLOY, M SHAPE, 2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Natural Copper-Free Aluminum (Cover) Material; Round Shape; 2 Inch Hub Size; 3 Hub(S); UL 1203, CSA C22.2 Approval; (4) Pad Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; La Style; (2) Side, (1) Down Hub Location; External Hub Type; 5 Inch Cover Opening Diameter; CONDULET[R] Brand; Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Includes Cover, Grounding Screw; Application General Purpose Wiring, Pulling of Wire, Connect Conduit Length and Change Direction of Conduit Run, Provide Access For Maintenance; Applicable Standard ANSI C33.27; GUA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 782274466101
• SKU Name: crsh guam69

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
