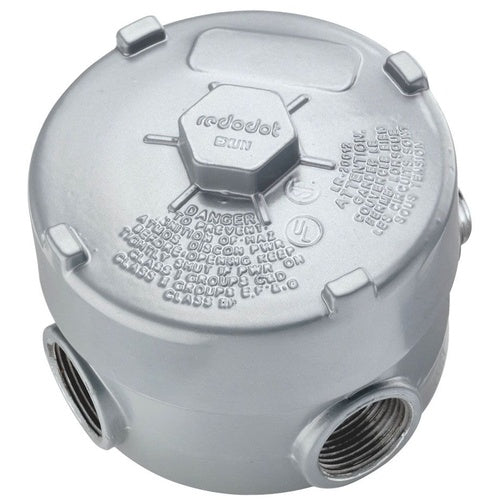

Red Dot EXUN-1 1/2" Explosion-Proof Round Conduit Box

Overview

Red Dot EXUN-1 1/2" Explosion-Proof Round Conduit Box

Product Specifications

• UPC: 04226934745
• Shape: Round
• Number Of Plugs: 3
• Cover Type: Internally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Material: Aluminum Lacquer Finished Die-Cast Copper Free Aluminum
• Approval: UL, CSA
• Catalog Number: EXUN-1
• Model: EXUN
• Style: X
• Hub Size: 1/2 Inch
• Hub Type: External
• Number Of Hubs: 5
• Hub Location: (4) Sides, (1) Down
• Capacity: 20.3 Cu Inch
• Catalog Description: 1/2 INCH HAZARDOUS LOCATION INTERNAL HUB WITH INSTALLED GREEN GROUND SCREW, DIE CAST ALUMINUM, 5 OUTLETS WITH 3 CLOSE UP PLUGS, 20.3 CUBIC INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Aluminum Lacquer Finished Die-Cast Copper Free Aluminum Material; Round Shape; 1/2 Inch Hub Size; 5 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Internally Threaded Cover Type; 20.3 Cu Inch Capacity; X Style; 3 Plug(S); (4) Sides, (1) Down Hub Location; External Hub Type; EXUN Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131708
• UPC 12 Digit: 042269347458
• SKU Name: rdot exun1

Resources

• Manufacturer Spec Sheet
