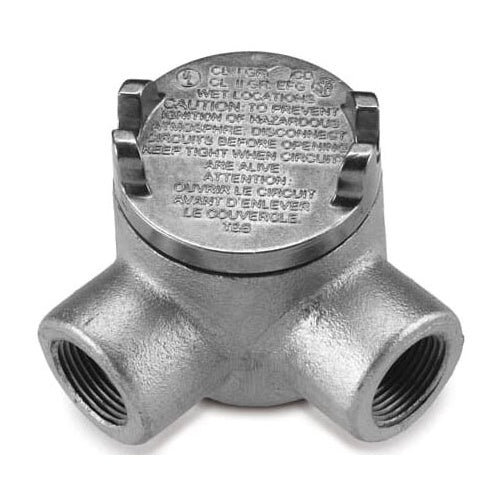

T&B GUAL16-TB 1/2" Gual-Body/Cover, O.D.-3-1/2

Overview

T&B GUAL16-TB 1/2" Gual-Body/Cover, O.D.-3-1/2

Product Specifications

• UPC: 78621034453
• Shape: Round
• Cover Type: Externally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Material: Aluminum Acrylic Painted Zinc Plated Ductile Iron (Body), Natural Finished Die-Cast Aluminum (Cover)
• Approval: UL 514A/886, CSA C22.2
• Additional Information: Includes Internal Grounding Screw, O-Ring Gasket
• Catalog Number: GUAL16-TB
• Model: GUAL
• Style: L
• Hub Size: 1/2 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (2) Side
• Capacity: 13.4 Cu Inch
• Catalog Description: 1/2 INCH GUAL HAZARDOUS LOCATION CONDUIT OUTLET BOX, BOX DUCTILE IRON ZINC PLATED, COVER DIE CAST ALUMINUM, 13.4 CUBIC INCH
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Zinc Plated Ductile Iron (Body), Natural Finished Die-Cast Aluminum (Cover) Material; Round Shape; 1/2 Inch Hub Size; 2 Hub(S); UL 514A/886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; 13.4 Cu Inch Capacity; L Style; (2) Side Hub Location; External Hub Type; Includes Internal Grounding Screw, O-ring Gasket; GUAL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131708
• UPC 12 Digit: 786210344539
• SKU Name: t&b gual16tb

Resources

• Manufacturer Spec Sheet
