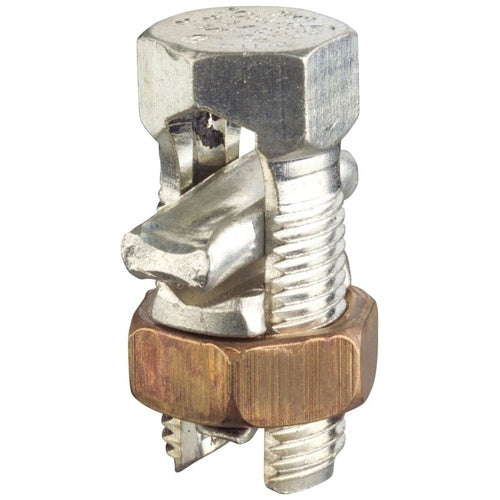

Blackburn 500HPS 500-1/0 Str Alum-Copper Split Bolt

Overview

Blackburn 500HPS 500-1/0 Str Alum-Copper Split Bolt

Product Specifications

• UPC: 78378685525
• Maximum Tap Conductor Size: 1/0 AWG STRANDED (COPPER/ALUMINUM), 397.5 KCMIL (ACSR), 500 KCMIL (COPPER/ALUMINUM)
• Material: ELECTROLYTIC TIN PLATED COPPER SPACER, TIN PLATED COPPER ALLOY BOLT/PRESSURE BAR
• Approval: UL, CSA
• Additional Information: OVERALL DIMENSION 1-7/8 INCH L X 3-1/32 INCH H
• Catalog Number: 500HPS
• Model: HPS
• Type: SPLIT BOLT
• Installation: SPLIT BOLT WITH SPACER
• Conductor Material: COPPER/ALUMINUM/ACSR
• Minimum Run Conductor Size: 1/0 AWG (ACSR), 1/0 AWG STRANDED (COPPER/ALUMINUM), 500 KCMIL (COPPER/ALUMINUM)
• Maximum Run Conductor Size: 1/0 AWG STRANDED (COPPER/ALUMINUM), 397.5 KCMIL (ACSR), 500 KCMIL (COPPER/ALUMINUM)
• Minimum Tap Conductor Size: 1/0 AWG (ACSR), 1/0 AWG STRANDED (COPPER/ALUMINUM), 500 KCMIL (COPPER/ALUMINUM)
• Catalog Description: TYPE HPS - SPLIT-BOLT CONNECTOR WITH SPACER, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP ACSR 397.5-1/0, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 500 KCMIL-1/0 STR, MIN TAP WITH ONE MAX MAIN 1/0 STR, TIN PLATED
• Category: Large Terminals & Connectors
• Full Size Image: h
• Full Technical Description: Split Bolt Type; Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar Material; 1/0 AWG (ACSR), 1/0 AWG Stranded (Copper/Aluminum), 500 kcmil (Copper/Aluminum) min. Run Conductor Size; 1/0 AWG Stranded (Copper/Aluminum), 397.5 kcmil (ACSR), 500 kcmil (Copper/Aluminum) Max. Run Conductor Size; 1/0 AWG (ACSR), 1/0 AWG Stranded (Copper/Aluminum), 500 kcmil (Copper/Aluminum) min. Tap Conductor Size; 1/0 AWG Stranded (Copper/Aluminum), 397.5 kcmil (ACSR), 500 kcmil (Copper/Aluminum) Max. Tap Conductor Size; Split Bolt With Spacer Installation; Copper/Aluminum/Acsr Conductor Material; UL, CSA Approval; Overall Dimension 1-7/8 Inch L X 3-1/32 Inch H; HPS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786855254
• SKU Name: 500hps blkbrn

Resources

• Manufacturer Spec Sheet
