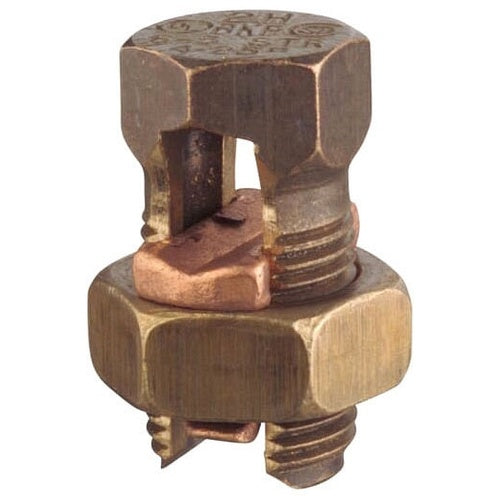

Blackburn 750M 750 Copper Split Bolt (C750)

Overview

Blackburn 750M 750 Copper Split Bolt (C750)

Product Specifications

• UPC: 78378620029
• Minimum Tap Conductor Size: 4/0 AWG Stranded
• Maximum Tap Conductor Size: 750 KCMIL
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Alloy Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 2-1/4 Inch Length x 3-21/32 Inch Height
• Catalog Number: 750M
• Brand Name: Blackburn
• Model: H
• Type: Split Bolt
• Installation: Hex Head Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 600 KCMIL
• Maximum Run Conductor Size: 750 KCMIL
• Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 750 KCMIL-600 KCMIL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 4/0 STR
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Alloy Pressure Bar Material; 600 kcmil min. Run Conductor Size; 750 kcmil Max. Run Conductor Size; 4/0 AWG Stranded min. Tap Conductor Size; 750 kcmil Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 2-1/4 Inch Length X 3-21/32 Inch Height; H Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200290
• SKU Name: 750m blkbrn
