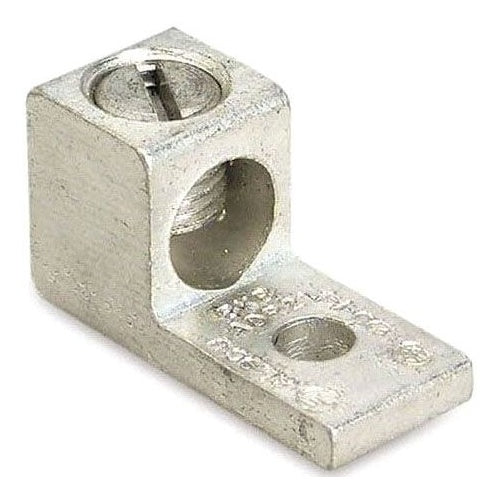

Blackburn ADR21 14-2/0 Aluminum/Copper Lug

Overview

Blackburn ADR21 14-2/0 Aluminum/Copper Lug

Product Specifications

• UPC: 78378661008
• Screw Type: Slot
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 1
• Pad Size: 27/32 Inch Length x 5/8 Inch Width x 3/16 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 1-15/32 Inch
• Approval: UL 486B, CSA
• Additional Information: Height 25/32 Inch
• Catalog Number: ADR21
• Brand Name: Blackburn
• Type: Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 2/0 AWG Stranded
• Conductor Material: Copper/Aluminum
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL SINGLE-CONDUCTOR, ONE-HOLE MOUNT, CONDUCTOR RANGE 14 AWG-2/0 STR, LENGTH 1-15/32 INCHES, WIDTH 5/8 INCH, HEIGHT 25/32 INCH, 1/4 INCH BOLT HOLE, SLOTTED SCREW, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 1-15/32 Inch Overall Length; 14 AWG min. Conductor Size; 2/0 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 27/32 Inch Length X 5/8 Inch Width X 3/16 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Slot Screw Type; Adr-ALCUL[TM] Brand; Height 25/32 Inch
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610082
• SKU Name: adr21 blkbrn

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
