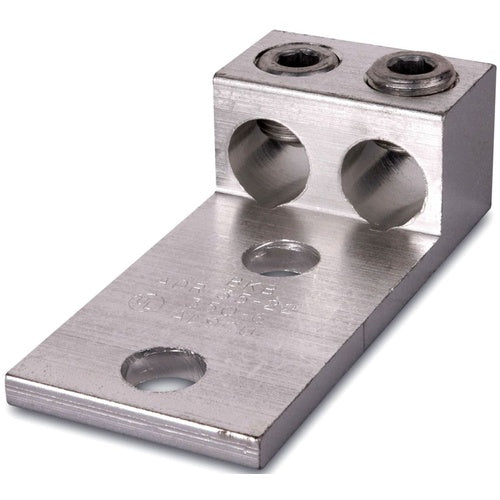

Blackburn ADR35-22 6-350 2-Barrel Aluminum/Copper Lug

Overview

Blackburn ADR35-22 6-350 2-Barrel Aluminum/Copper Lug

Product Specifications

• UPC: 78378661023
• Screw Type: Allen
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 2
• Pad Size: 3 Inch Length x 2-19/64 Inch Width x 5/16 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 4-1/4 Inch
• Approval: UL, CSA
• Catalog Number: ADR35-22
• Model: ADR
• Type: Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 350 KCMIL
• Conductor Material: Aluminum/Copper
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL TWO-CONDUCTOR, TWO-HOLE MOUNT, CONDUCTOR RANGE 6 STR-350 KCMIL, LENGTH 4-1/4 INCHES, WIDTH 2-19/64 INCHES, HEIGHT 1-3/8 INCHES, 1/2 INCH BOLT HOLE, 1-3/4 INCH CENTERS, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 4-1/4 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 350 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 3 Inch Length X 2-19/64 Inch Width X 5/16 Inch Thickness Pad Size; 2 Pad Hole(S); Straight Pad Type; Allen Screw Type; Adr-ALCUL[TM] Brand; ADR Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610235
• SKU Name: adr3522 blackburn
