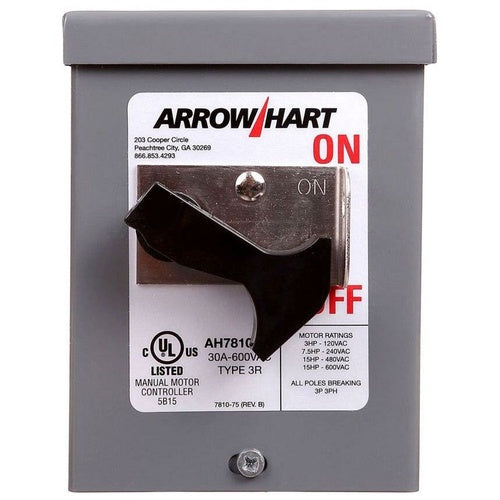

Cooper AH7810WD 3P Manual Controller Nema3R 30A

Overview

Cooper AH7810WD 3P Manual Controller Nema3R 30A

Product Specifications

• Brand Name: Eaton
• Special Features: Motor control switches, swt/encl combos
• Sub Brand: Eaton Wiring Devices
• Type: Industrial
• Catalog Description: EATON MANUAL MOTOR CONTROLLER, #14-10 AWG, 30A, PANEL, 600V, FRONT WIRED SCREW AND CLAMP, MAINTAINED CONTACT, NEMA 3R, ENCLOSURE: COPPERLESS ALUMINUM, THREE-POLE, TWO-POSITION, THREE-PHASE, TOGGLE SWITCH, CU-ALLOY TERMINAL, SINGLE-THROW
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: 3-Phase Type; Glass-Filled Nylon Material; 4.5 Inch W X 4 Inch D X 6 Inch H Size; 3PST Operation Type; UL (Canada and Us), UL 508 Approval; 600 VAC Voltage Rating; NEMA 3R Enclosure; 30 Ampere Current Rating; 7.5 HP HP at 240 V; 3 HP HP at 120 V; 15 HP HP at 600 V; 15 HP HP at 480 V; Application Industrial; Termination Style Front Wired Screw and Clamp; Wire Size 10 AWG; RoHS Compliant; NAFTA Compliant; AH7810 Model
• Manufacturer: Eaton Cooper Wiring
• Manufacturer Brand: Eaton Wiring Devices Industrial/Residential
• Sub Category: Motor Starting Switch
• Unspsc: 39122223
• UPC 12 Digit: 040893006055
• SKU Name: ah ah7810wd

Resources

• Manufacturer Spec Sheet
