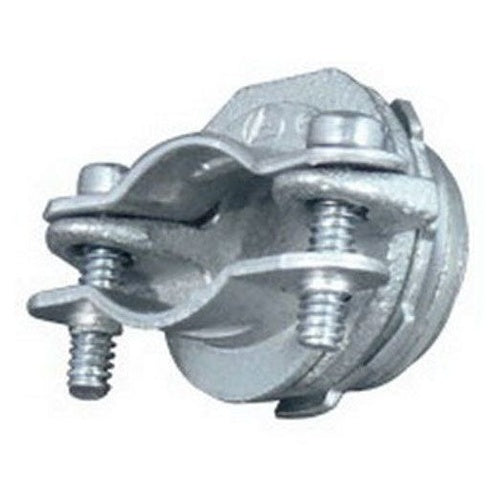

Appleton 15234 1" Malleable 2-Screw Service Entrance Connector

Overview

Appleton 15234 1" Malleable 2-Screw Service Entrance Connector

Product Specifications

• UPC: 78138178050
• Approval: UL 514B, CSA C22.2
• Used On: Non-Metallic Sheathed/Service Entrance Cable
• Additional Information: Applicable Standard NEMA FB-1; Includes Locknut
• Catalog Number: 15234
• Minimum Opening: 0.5 Inch
• Maximum Opening: 0.97 Inch
• Trade Size: 1 Inch
• Thread Length: 0.56 Inch
• Length: 0.66 Inch
• Diameter: 2.03 Inch
• Material: Malleable Iron
• Catalog Description: CONDUIT CONNECTOR, SIZE: 1 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 1/2 - 0.97 IN, MATERIAL: MALLEABLE IRON, HEIGHT: 2.03 IN, WIDTH: 0.66 IN, THREAD LENGTH: 0.56 IN, STANDARD: UL 514B, UL LISTED: E23237, CSA
• Category: Service Entrance Cable Fittings
• Full Technical Description: 2-Screw, Clamp Type; Zinc Electroplated Malleable Iron Material; 0.66 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.56 Inch Thread Length; 0.5 Inch min. Opening; 0.97 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 2.03 Inch Diameter; 1 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381780506
• SKU Name: app 15234
