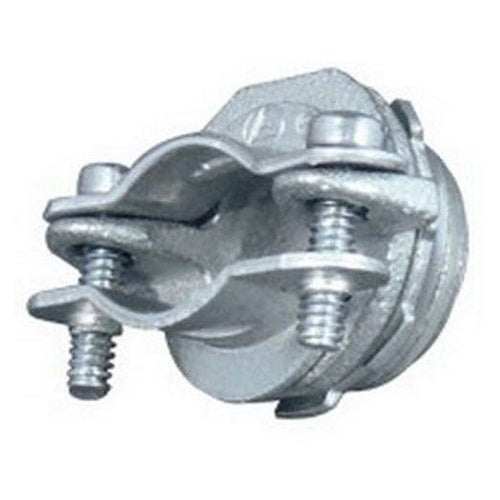

Appleton 15235-DC 1-1/4" 2-Screw Service Entrance Connector

Overview

Appleton 15235-DC 1-1/4" 2-Screw Service Entrance Connector

Product Specifications

• UPC: 78138178065
• Approval: UL 514B, CSA C22.2
• Used On: Non-Metallic Sheathed/Service Entrance Cable
• Additional Information: Applicable Standard NEMA FB-1; Includes Locknut
• Catalog Number: 15235-DC
• Minimum Opening: 0.38 Inch
• Maximum Opening: 1.03 Inch
• Trade Size: 1-1/4 Inch
• Thread Length: 0.63 Inch
• Length: 0.63 Inch
• Diameter: 2.19 Inch
• Material: Die-Cast Zinc
• Catalog Description: CONDUIT CONNECTOR, SIZE: 1-1/4 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.38 - 1.03 IN, MATERIAL: DIE-CAST ZINC, HEIGHT: 2.19 IN, WIDTH: 0.63 IN, THREAD LENGTH: 0.63 IN, STANDARD: UL 514B, UL LISTED: E2323
• Category: Service Entrance Cable Fittings
• Full Technical Description: Die-Cast Zinc Material; 0.63 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.63 Inch Thread Length; 0.38 Inch min. Opening; 1.03 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 2.19 Inch Diameter; 1-1/4 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381780650
• SKU Name: app 15235dc
