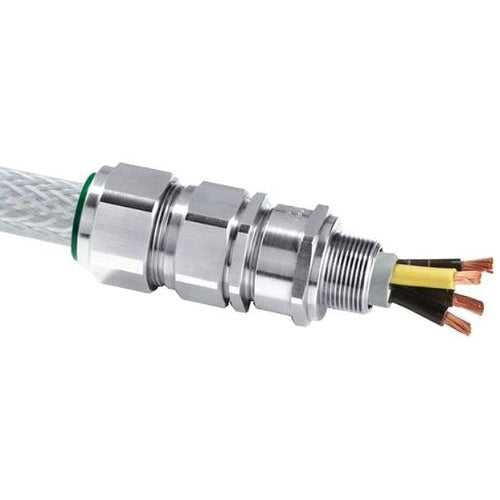

Appleton 25E1Fx0755 3/4" Nickel Plated Cable Gland CMP

Overview

Appleton 25E1Fx0755 3/4" Nickel Plated Cable Gland CMP

Product Specifications

• Catalog Description: CABLE GLAND, TYPE STRAIGHT, THREAD SIZE 3/4 INCH NPT, CONSTRUCTIONAL FEATURE FLAMEPROOF, CABLE TYPE ARMORED CABLE, CABLE OUTER DIAMETER 0.72 TO 1.03 INCH, MATERIAL NICKEL PLATED BRASS, ENCLOSURE IP66, OPERATING TEMPERATURE -60 TO 130 DEG C, APPROVAL CE, ATEX/IECEX, APPLICABLE STANDARD BS 6121, NF E 03 601, ISO 965, IEC 60079-0/60079-1/60079-7/60079-15/60079-31/61241-0/61241-1, APPLICATION HAZARDOUS AREAS (GAS AND DUST), ONSHORE AND OFFSHORE, SEAL MATERIAL LOW SMOKE FUME THERMOPLASTIC ELASTOMER, THREADED SIZE 15 MM, CABLE BEDDING DIAMETER 0.44 TO 0.78 INCH, WEIGHT 0.33 KG
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Nickel Plated Brass Material; Armored Cable Type; DNV, CSA (Canada and Us), ABS Approval; Class I Div 2 Group A B C D, Class II Div 2 Group E F G, Class III, Zone 1 and 2/21 and 22, NEMA 3/4/4X, IP66 Enclosure; 3/4 Inch Thread Size; -76 to 266 Deg F (Ambient) Operating Temperature; Flameproof; 0.72 to 1.03 Inch Cable Outer Diameter; Seal Material Low Smoke Fume Thermoplastic Elastomer; Application Hazardous Location; Applicable Standard Nec/Cec, Atex/Iecex, Inmetro, Eurasec, Kcc; E1FX Mode
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 781381254700
• SKU Name: app 25e1fx0755

Resources

• Manufacturer Spec Sheet
