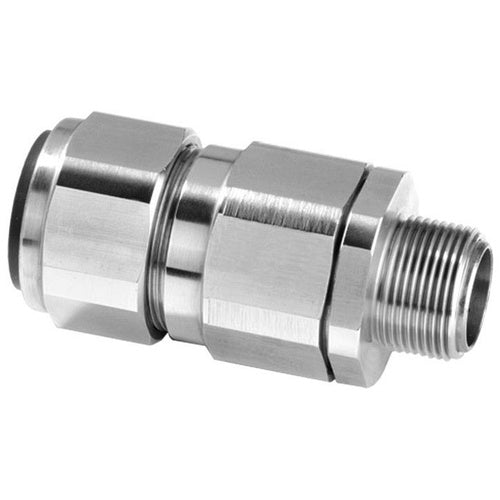

Appleton 63Px2Kx3005 3" Nickel Plated Cable Gland CMP

Overview

Appleton 63Px2Kx3005 3" Nickel Plated Cable Gland CMP

Product Specifications

• Catalog Description: CABLE GLAND, TYPE STRAIGHT, THREAD SIZE 3 INCH NPT, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, CABLE TYPE WIRE BRAID ARMORED, JACKETED, MARINE SHIPBOARD CABLE, CABLE OUTER DIAMETER 2.15 TO 2.59 INCH, MATERIAL NICKEL PLATED BRASS, ENCLOSURE NEMA 4X, IP66/IP67/IP68, APPROVAL UL 2225, CSA C22.2, ATEX/IECEX, APPLICABLE STANDARD IEC 60079-0/60079-1/60079-7/60079-15/60079-31, SEAL MATERIAL LOW SMOKE FUME THERMOPLASTIC ELASTOMER, EPOXY PUTTY, THREAD SIZE 0.59 INCH L, MAXIMUM CABLE BEDDING DIAMETER 2.15 INCH, MAXIMUM NUMBER OF CORES 4.53 INCH, WEIGHT 1.6 KG
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Nickel Plated Brass Material; Wire Braid Armored/Jacketed Cable Type; UL 2225, DNV, CSA (Canada and Us), CSA C22.2, ABS Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III, Zone 1, NEMA 4X, IP66/67/68 Enclosure; 3 Inch Thread Size; Explosionproof, Oil Resistant; 2.15 to 2.59 Inch Cable Outer Diameter; Thread Length 0.59 Inch; Seal Material Low Smoke Fume Thermoplastic Elastomer; Includes Epoxy Putty Sealing Compound; Application Hazardous Location; Applicable Sta
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 781381251532
• SKU Name: app 63px2kx3005

Resources

• Manufacturer Spec Sheet
